Biometra TAdvanced – Benefit from More Than 25 Years of Experience in PCR

A Variety of Block Modules Makes Your PCR Cycler Adaptable to Each Future Requirement

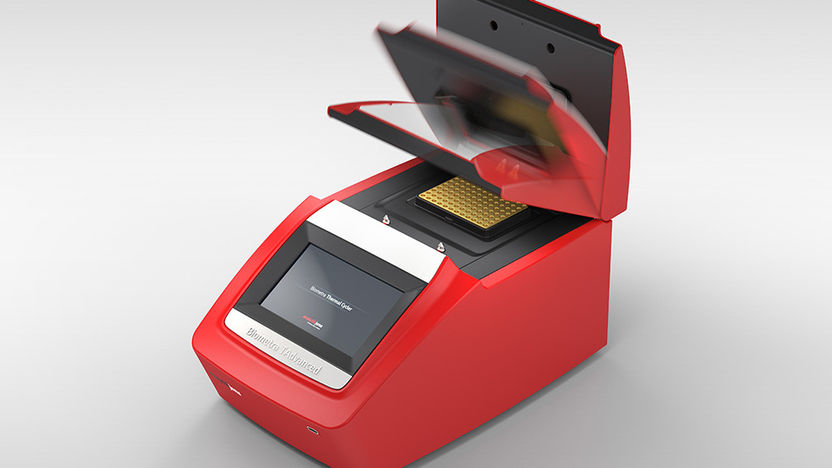

The Biometra TAdvanced thermal cycler is available with twelve different block modules. A Quick Block Exchange system allows an easy exchange of block modules in a few seconds. All blocks offer high ramp rates for fast protocol running times. To achieve ultimate performance, a 96-well block made of silver is available. Due to its excellent heat conductivity, silver equilibrates extremely quickly, thus providing maximum speed and temperature uniformity. To protect the valuable silver blocks against corrosion, the block surfaces are gold plated. By the rubber sealing at the lid an encapsulated space is formed when the lid is closed. The closed room serves to improve the temperature uniformity of the sample block and avoids formation of condensed water at the final PCR cooling step. Furthermore, all blocks are perfectly sealed to prevent condensed water from penetrating the Peltier elements underneath the sample block and other parts of the electronics. Thus, the instruments life time is expanded. What makes the Biometra TAdvanced particularly impressive are its excellent heating and cooling rates. These are achieved through new power and control electronics. Even using an aluminum sample block, this allows speeds to be reached that had previously only been possible using instruments with silver blocks.

Alongside the established block formats with 60, 96 and 384 sample positions, Biometra TAdvanced also offers double block variants for tubes with a capacity of 0.2 ml and 0.5 ml respectively. These twin blocks offer the flexibility of two devices in one. Both blocks can share a program and can be started independently of one another or simultaneously. A version of the 2 x 48 well block with an added gradient function is also available as an option. With the quick-change system, it is also possible to exchange different sample blocks with just one hand.

With the Biometra TAdvanced, Analytik Jena is offering a all-round model with the customary high level of quality as well as wide-ranging functionality that enables the customers to further optimize their validation processes. The new electronics system includes USB and Ethernet communications interfaces and a seven-inch. In addition to easy-to-use programming, the intuitive software also comes with a user management function that is simple to configure as well as extensive tools for system diagnostics and recording PCR runs. PCR reports can be created using either tabular or graphical programming. The user-specific quick-start function combined with a program preview function means no more tedious searching for PCR programs that have already been used.

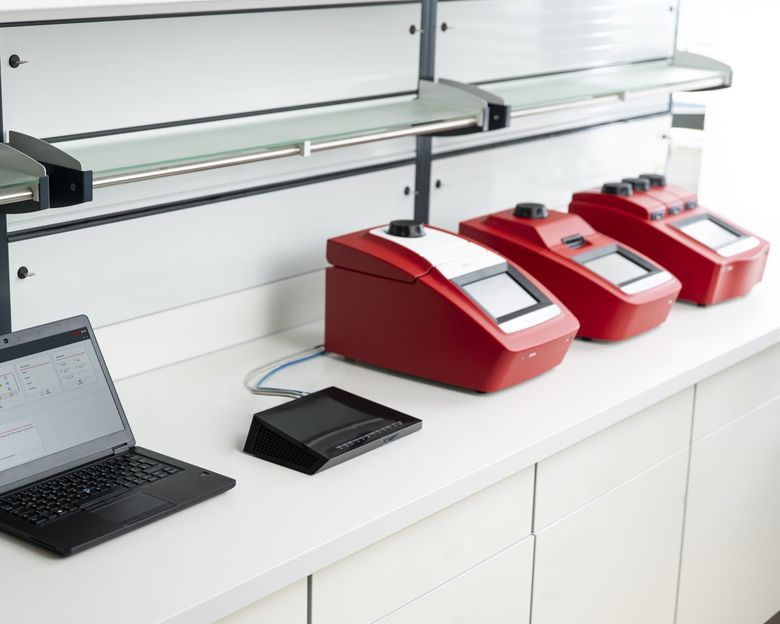

The new PCR Control App makes it possible to monitor the cyclers in a network from the office. The App is available for iOS and Android smartphones and tablets. It allows to track PCR runs live, to start, stop or pause runs. Additionally, status or error messages can be sent.

As an option, the Biometra TAdvanced thermal cycler is available with a gradient function for optimizing new primer pairs with unknown annealing temperatures. The “Linear Gradient Tool” allows the desired temperature difference between the columns or rows in the sample block to be adjusted, enabling the gradient’s temperature curve to be configured precisely.

Biometra TAdvanced – No Compromises in Technology

  • FASTEST RAMPING, HIGHEST ACCURACY, BLOCK/WELL CONTROL: Superior sample block temperature control
  • WHISPER QUIET: Low noise emission of max. 45 dB
  • HIGH PERFORMANCE SMART LID: Defined pressure control for highly reproducible results
  • QUICK BLOCK EXCHANGE: Easy exchange of block modules thanks to QBE technology
  • LINEAR GRADIENT TOOL: For easy gradient programming using the primer annealing temperature
  • PROTOCOL WIZARD: Simple protocol creation by just a few inputs
