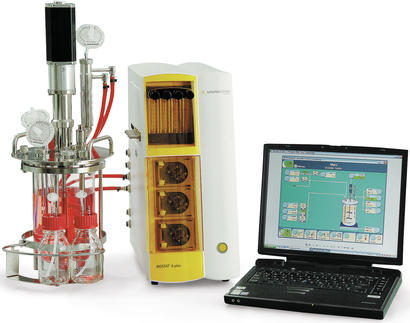

With the introduction of BIOSTAT® A plus, Sartorius has created a range of very compact autoclavable bioreactor | fermentor systems with working volumes of up to 5 l that are within the reach users having limited budgets. In part, this has been made possible by transferring the controlling “Human-Machine Interface” to standard Notebook-PC which is delivered with the BIOSTAT® A plus.

This concept has the additional benefit of enabling the user to operate the system and transfer measured data to an additionally installed MFCS/DA SCADA software package for further evaluation. The application-driven, configured packages for microbial and cell culture include everything needed for to get started immediately. These configurations are available with a choice of 1, 2 or 5 l working volume vessels as well as additional add-on options and weight measurement.

Each system is supplied with detailed information guides describing recommended experimental conditions, media composition, controller set points for the most commonly encountered expressions systems.

  • Ready-to-us packages for microbial or cell culture applications
  • Inclusive Notebook PC for operation
  • Control of temperature, pH, DO, stirrer speed, gas mixing, Foam | Level and substrate
  • Configurable 2-stage DO controller via stirrer speed, gas mixing or substrate
  • In-line pH calibration
  • Trend display
  • 4-gas mixing system with individual gas flow path for cell culture packages
  • Oxygen enrichment capability for microbial packages
  • Interchangeable culture vessels with 1, 2 or 5 l working volume
  • Powerful PC operating software – capable of handling up to four units
  • MFCS/DA data storage and plotting software package
  • Easy to follow step by step installation and user guide
